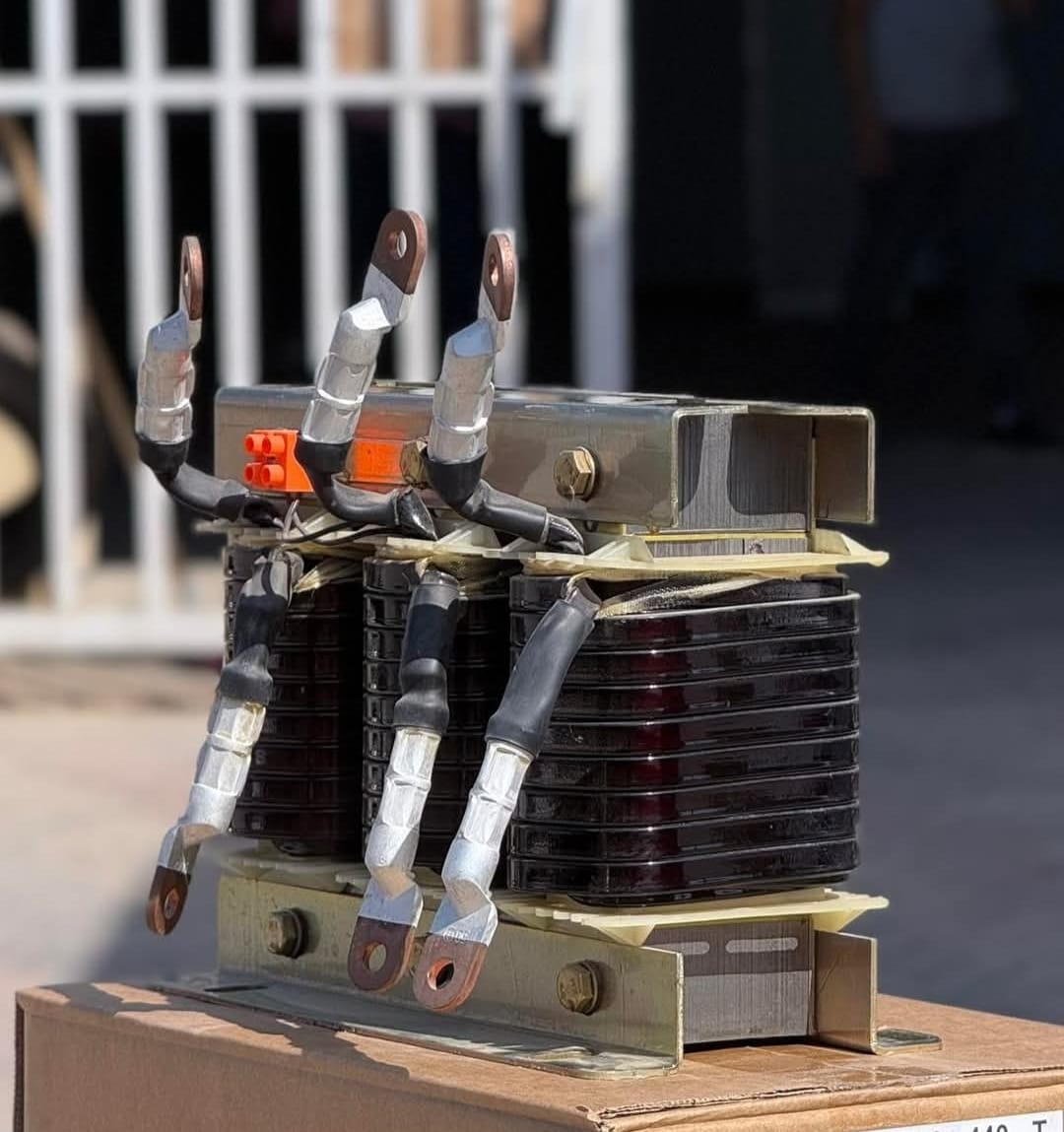

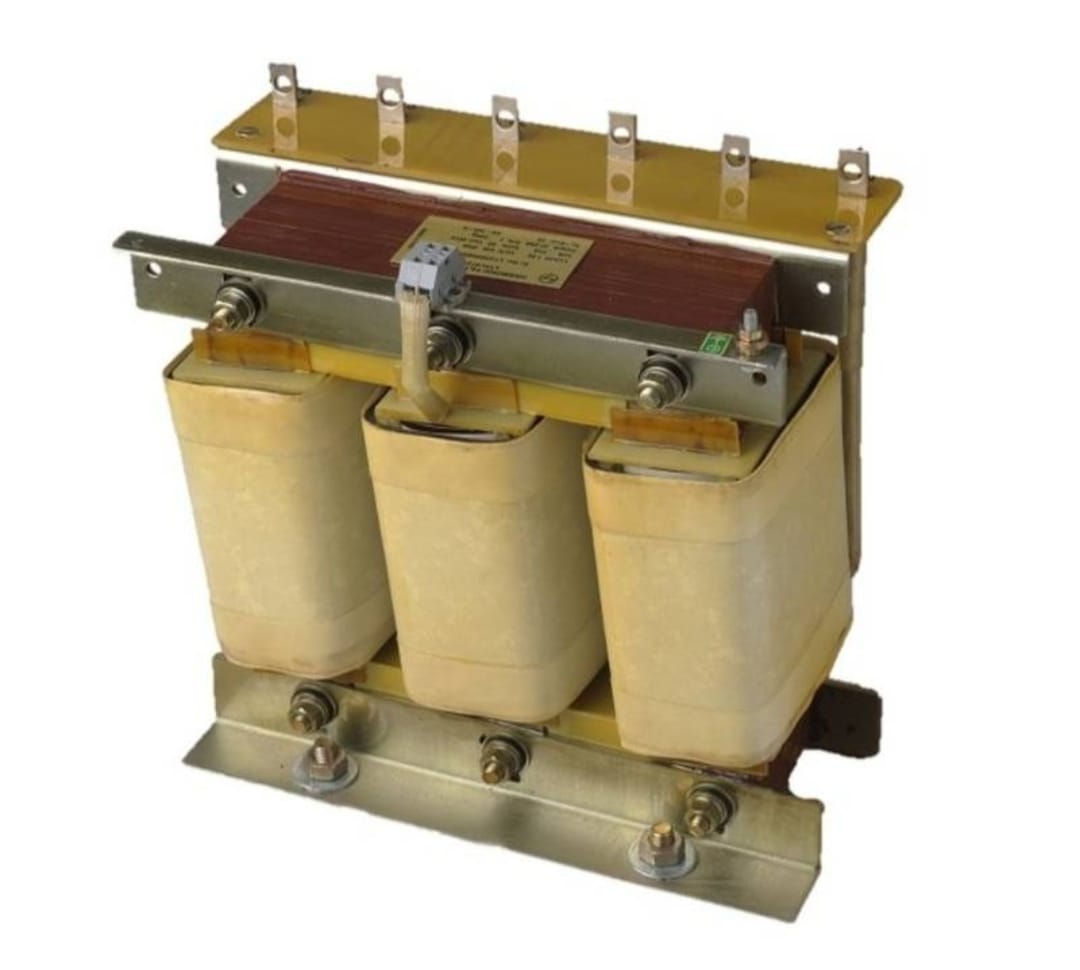

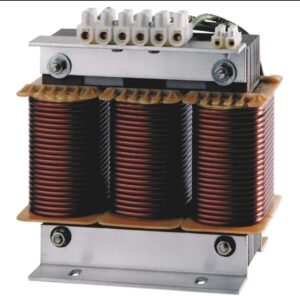

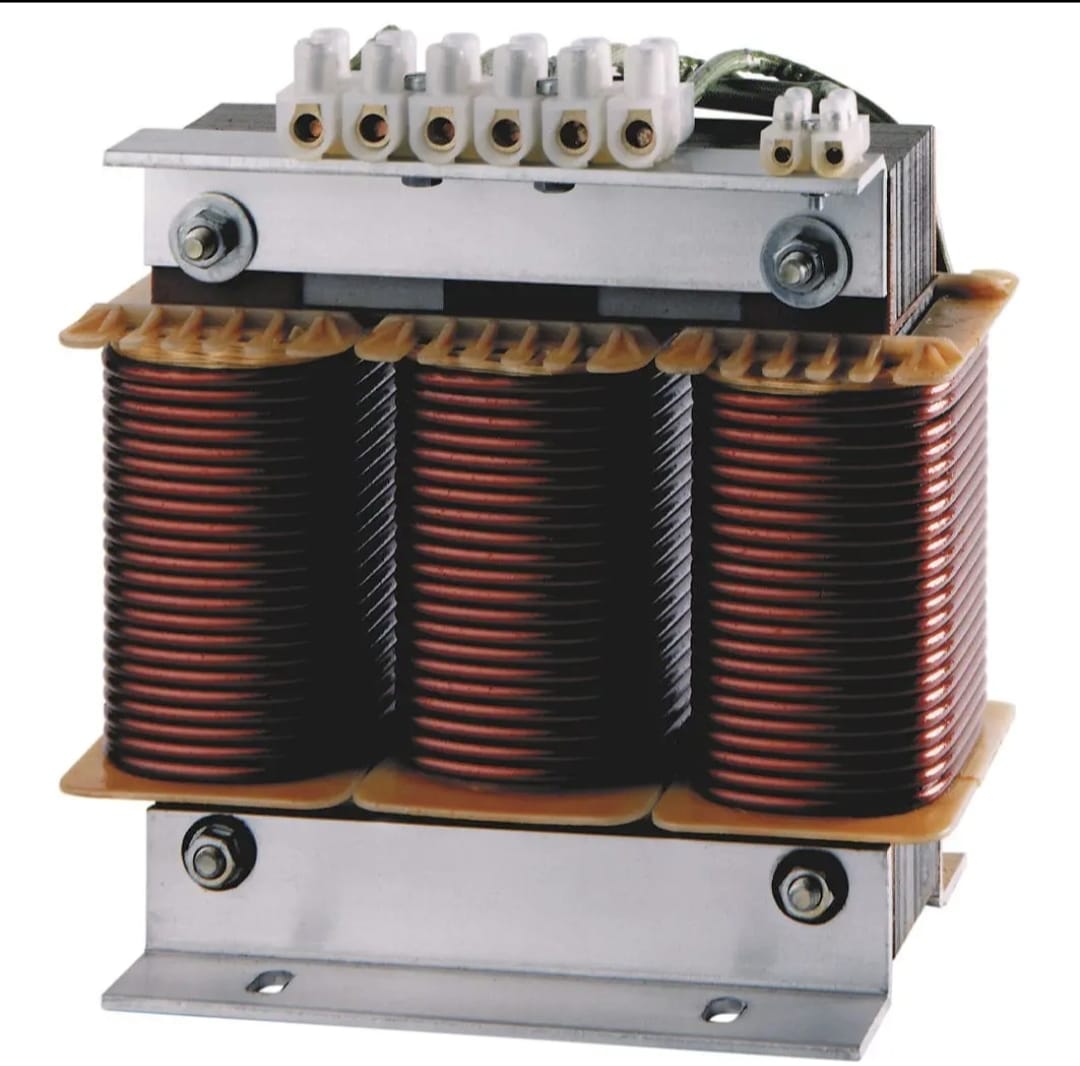

The Basic Harmonic Filter Reactors from FRAKO are essential components used in power factor correction systems, specifically designed to work in conjunction with LKT-type capacitors. These reactors form part of detuned filter circuits, helping to reduce harmonics in low-voltage electrical networks and ensuring reliable operation.

• Key Features:

– High Efficiency: Low-loss design for improved energy efficiency across the system.
– Integrated Design: Comes with mounting brackets and pre-connected cables for easy installation.
– Thermal Protection: Equipped with thermal switches to prevent overheating and ensure long-term reliability.
– High Thermal Endurance: Capable of withstanding ambient temperatures up to +60°C, ideal for demanding industrial environments.

• Technical Specifications:

– Power Range: 25 kVAR – 50 kVAR
– Voltage: 400 V – 525 V
– Detuning Factor (Version): 7% – 14%
